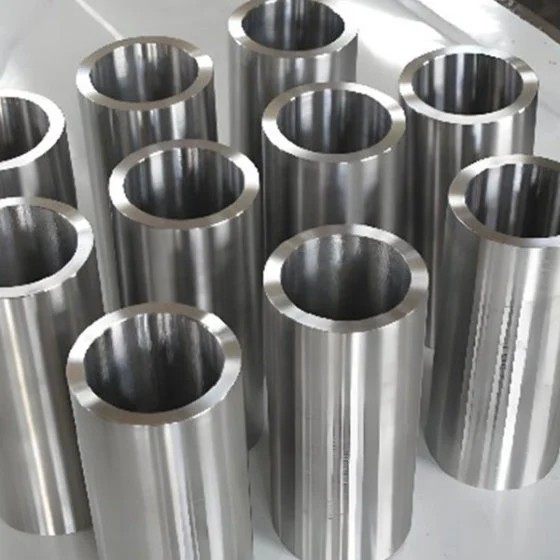

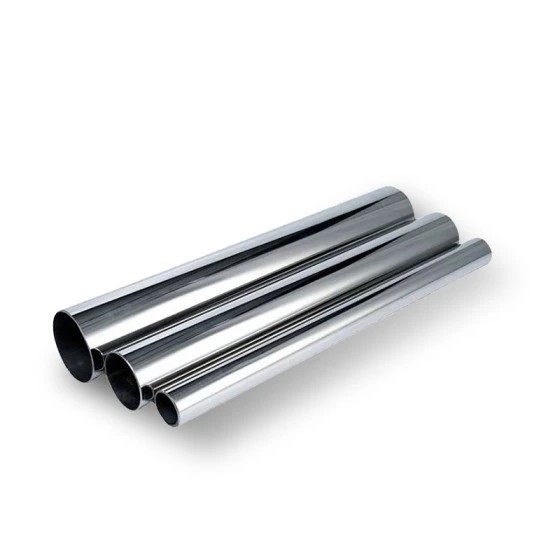

201 Stainless Steel Pipe

Type 201 stainless steel is an austenitic chromium-nickel-manganese stainless steel, which is developed to save nickel. Type 201 is a low-cost alternative to traditional Cr-Ni stainless steels such as 301 and 304. The nickel is replaced by added manganese and nitrogen. It cannot be hardened by heat treatment, but can reach high tensile strength by cold working. Type 201 is essentially non-magnetic in the annealed condition and becomes magnetic upon cold working. In many applications, the 201 type may replace the 301 type.
Certification
Email : info@posco-metal.com
Contact Us
Product Description
Factory Workshop
Packing And Delivery
201 Stainless Steel Pipe Description

Type 201 stainless steel is an austenitic chromium-nickel-manganese stainless steel, which is developed to save nickel. Type 201 is a low-cost alternative to traditional Cr-Ni stainless steels such as 301 and 304. The nickel is replaced by added manganese and nitrogen. It cannot be hardened by heat treatment, but can reach high tensile strength by cold working. Type 201 is essentially non-magnetic in the annealed condition and becomes magnetic upon cold working. In many applications, the 201 type may replace the 301 type.


Product Parameters

Product Name

201 Stainless Steel Pipe

Type

Steel Pipe

Outer diameter

Round Tube

4mm-200mm

Square Tube

10*10mm-100*100mm

Rectangular Tube

10*20mm-50*100mm

Wall Thickness

0.6mm-6.0mm

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.

Scope of Application

Common applications for stainless steel pipes include food processing,

Textile operations, Breweries, Water treatment plants, Oil and gas processing,

Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.

Certificate

ISO, SGS, BV, etc.

Production Technology

Hot Rolling, Cold Rolling

Edge Processing

Edging, Trimming


Chemical Composition

C

Si

Mn

Cr

Ni

S

P

≤ 0.15

≤ 0.75

5.50~7.50

16.00~18.00

3.50~5.50

≤ 0.03

≤ 0.06


Mechanical Properties

Tensile Strength Kb (MPa)

Yield Strength σ0.2 (MPa)

Elongation D5 (%)

Hardness

≥ 520

≥ 275

≥55-60

≤183HB；≤ 100 HRB


Physical Performance

Density(g/cm³)

Modulus of Elasticity(Gpa)

Coefficient of Thermal Expansion(10-6/°C)

Coefficient of Thermal Conductivity(W/m*K)

Resistivity(μohm.in)

7.8

197

15.7

16.2

27
