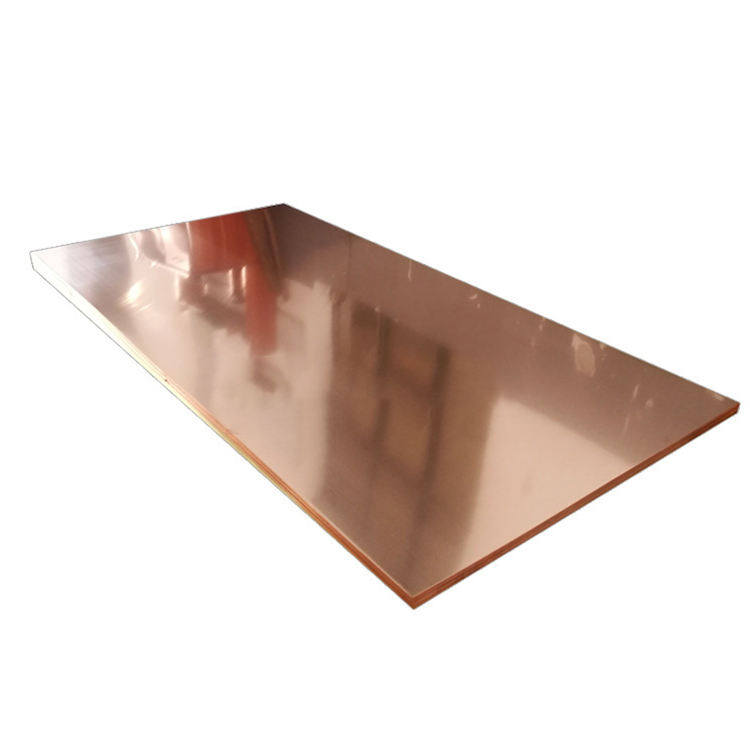

C10200/TU1 Copper Plate

C10200/TU1 Copper Plate

C10200/TU1 is a high-purity, oxygen-free, phosphorus-free deoxidized copper in vacuum without evaporating elements. It has high electrical and thermal conductivity, good welding performance and excellent welding performance attributes. It has excellent hot and cold forming properties, and has good compression resistance and corrosion resistance, especially in the atmosphere, due to the good adhesion of the oxide layer.
Certification
Product Description
Factory Workshop
Packing And Delivery

Product Description

C10200/TU1 is a high-purity, oxygen-free, phosphorus-free deoxidized copper in vacuum without evaporating elements. It has high electrical and thermal conductivity, good welding performance and excellent welding performance attributes. It has excellent hot and cold forming properties, and has good compression resistance and corrosion resistance, especially in the atmosphere, due to the good adhesion of the oxide layer.


Product Parameters

Thickness:

0.1-300mm,or customized

Length:

100-12000mm,or customized

Width:

10-3000mm,or customized

Standard:

ASTM,AISI,JIS,GB, DIN,EN

Brand

C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,

C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,

C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000,

C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800,

C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200,

T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,ect.

Surface:

Grinding, polishing, brightening, oiling, hair thread, brush, mirror, sandblasting or processing as required

Certification:


ISO.SGS.BV


Payment Method:

FOB,CRF,CIF,EXW Acceptable

Port of Loading:

Any port in China

Delivery time:

received.30%After deposit7-15working day


chemical composition

Copper+Silver

With Ag:

Tin

Sn:

Zinc

Zn:

Lead

Pb:

Nickel

It is:

Iron

Fe:

99.97

0.002

0.003

0.003

0.002

0.004

Antimony

Sb:

Sulphur

S:

Arsenic

As:

Bismuth

Bi:

Oxygen

O:

Phosphorus

P:

0.002

0.004

0.002

0.001

0.002

0.002


Mechanical properties

Tensile Strength

Kb (MPa):

Elongation

D10 (%):

Density:

≥ 275

≥35

8.9

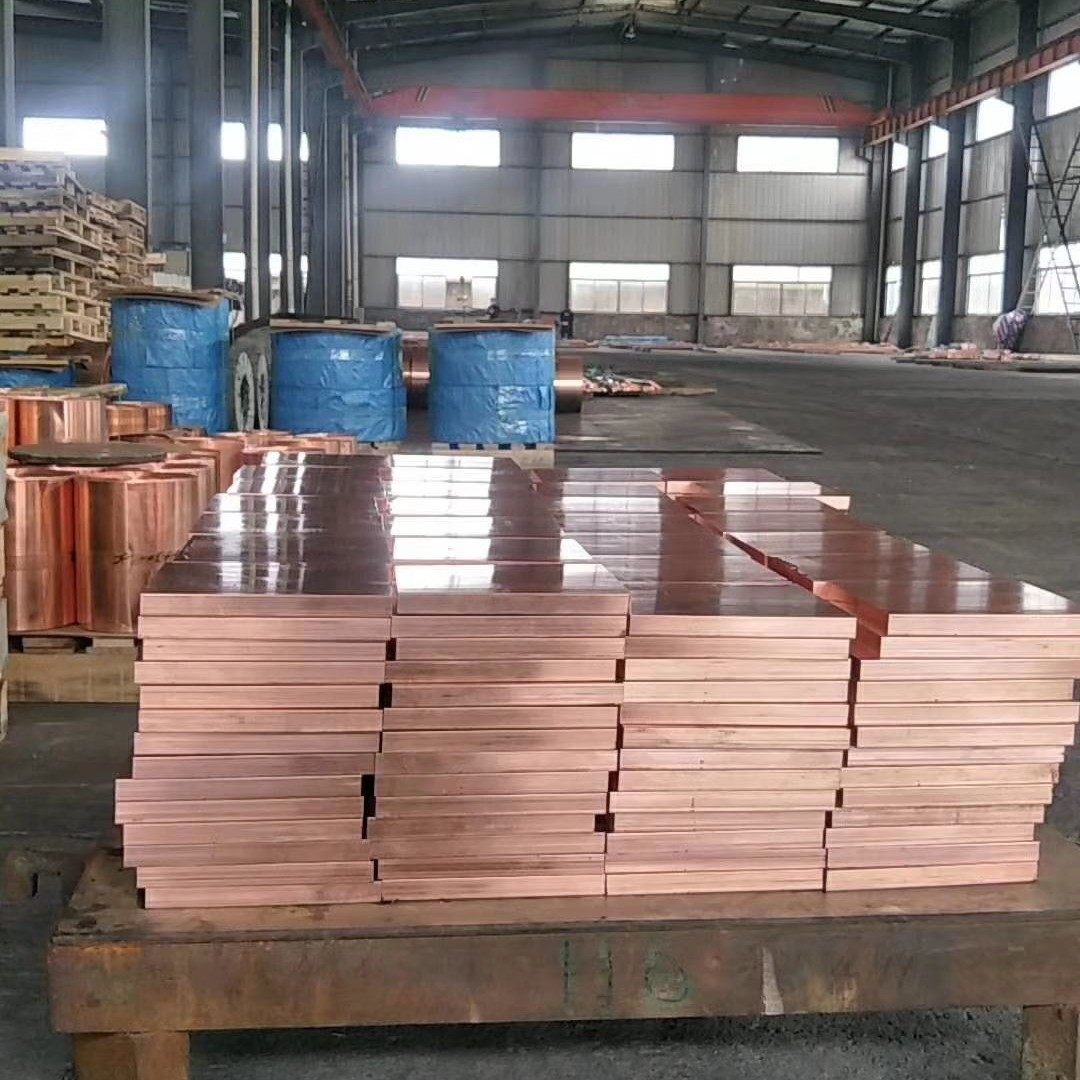

  • factory
  • factory
  • factory
  • production equipment (10)
  • production equipment (3)
  • production equipment (6)
  • Pack and ship (1)
  • Pack and ship (2)
  • Pack and ship (3)
  • Pack and ship (4)
  • Pack and ship (5)
  • Pack and ship (6)
