Name: A514 Carbon Steel Plate
SKU: 0

Home / Products / Carbon Steel / Carbon Steel Plate/Sheet / A514 Carbon Steel Plate

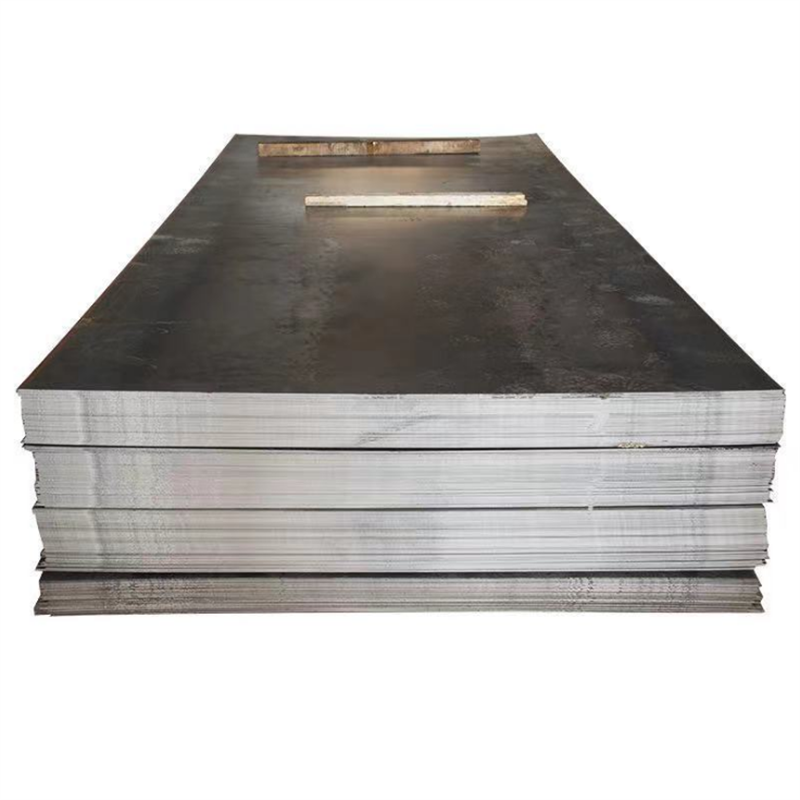

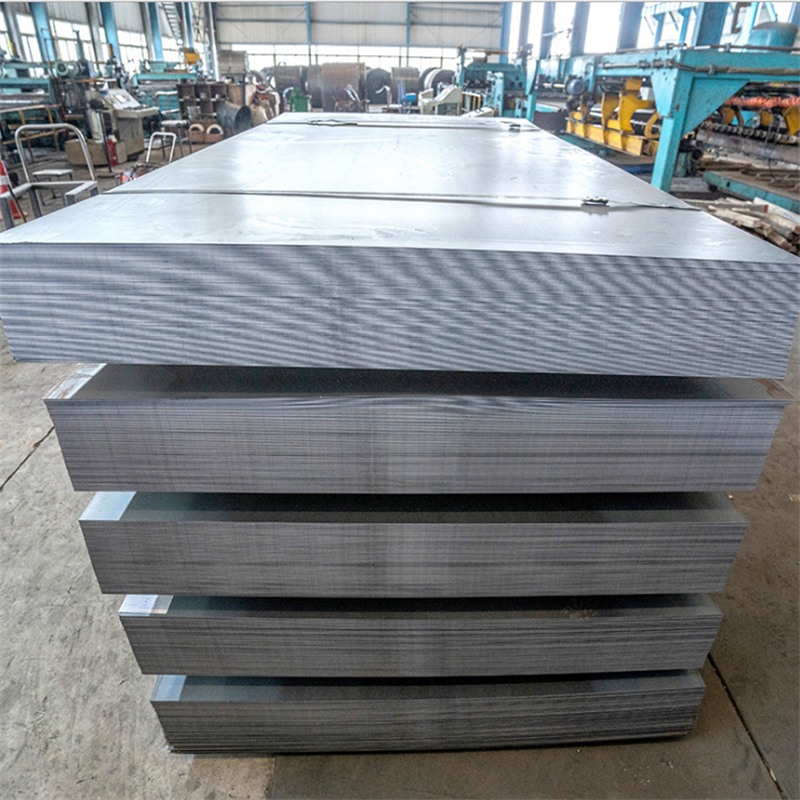

A514 Carbon Steel Plate

ASTM A514 steel is available in several grades: A, B, C, E, F, H, J, K, M, P, Q, S, and T, all of which have the same mechanical properties. ASTM A514 steel plates are conventionally quenched and tempered steel. ASTM A514 steel plate is known for its high yield strength, weldability and toughness, even under low temperature conditions. ASTM A514 steel is a special high-strength steel, mainly used as building structural steel.

Email : info@posco-metal.com

Contact Us

Product Description

Factory Workshop

Packing And Delivery

A514 Carbon Steel Plate Description

Scope of Application

ASTM A514 steel plate is used where welding, processing, and ultra-high-strength steel are required to reduce weight or meet high-strength requirements. ASTM A514 steel plate is a commonly used structural steel in building construction, used in cranes or other large machinery that bears high loads.

Product Parameters

Product Name	A514 Carbon Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered Or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A514	C	Mn	P	S	Ni	Cr	Mo
GradeA	0.15~0.21	0.80~1.10	0.035	0.4-0.8	-	0.5-0.8	0.18-0.28
GradeB	0.12-0.21	0.70-1.0	0.035	0.20-0.35	-	0.4-0.65	0.15-0.25
GradeC	0.1-0.2	1.10-1.5	0.035	0.15-0.30	-	-	0.15-0.30
GradeE	0.12-0.20	0.4-0.7	0.035	0.2-0.4	-	1.40-2.0	0.4-0.6
GradeF	0.1-0.2	0.60-1.0	0.035	0.15-0.35	0.70-1.0	0.4-0.65	0.4-0.6
GradeH	0.12-0.21	0.95-1.3	0.035	0.20-0.35	0.3-0.7	0.4-0.65	0.2-0.3
GradeJ	0.12-0.21	0.45-0.7	0.035	0.20-0.35	-	-	0.50-0.65
