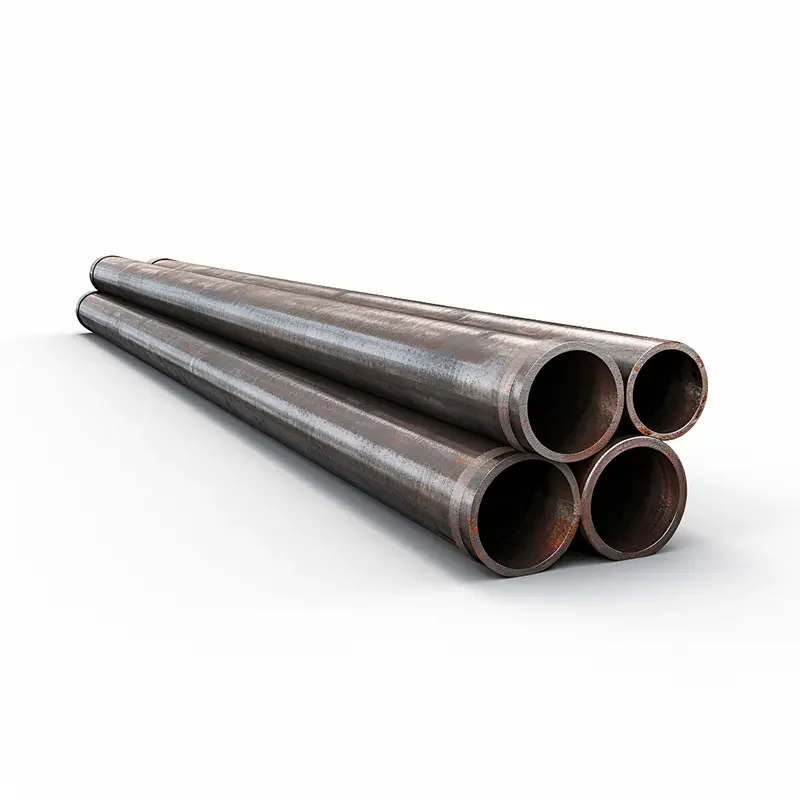

A333 Seamless & Welded Steel Pipe

ASTM A333 is the standard specification for seamless and welded carbon and alloy steel pipe for low temperature applications or other applications requiring notch toughness. This standard covers several grades of ferritic steel: Grade 3, Grade 4, Grade 6, Grade 7, Grade 8, Grade 9, Grade 10 and Grade 11.

Email : info@posco-metal.com

Contact Us

Product Description

Factory Workshop

Packing And Delivery

A333 Seamless & Welded Steel Pipe Description

Scope of Application

Seamless and welded steel pipes for low temperature service and other applications with the required notch toughness.

Product Parameters

Product Name	A333 Seamless & Welded Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

A333	Grade1	Grade3	Grade4	Grade6	Grade7	Grade8	Grade9	Grade10	Grade11
C	0.30	0.19	0.12	0.30	0.19	0.13	0.20	0.20	0.10
Mn	0.40-1.06	0.31-0.64	0.50-1.05	0.29-1.06	0.90	0.90	0.40-1.06	1.15-1.50	0.60
P	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.035	0.025
S	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.015	0.025
Si	-	0.18-0.37	0.08-0.37	0.10 min	0.13-0.32	0.13-0.32	-	0.10-0.35	0.35
Ni	-	3.18-3.82	0.47-0.98	0.40	2.03-2.57	8.40-9.60	1.60-2.24	0.25	35.0-37.0
Cr	-	-	0.44-1.01	0.30	-	-	-	0.15	0.50
Cu	-	-	0.40-0.75	0.40	-	-	0.75-1.25	0.15	-
Al	-	-	0.04-0.30	-	-	-	-	0.06	-

Mechanical Properties

A333	Tensile Strength min.		Yield Strength min.		Elongation % min.
Grade	psi	MPa	psi	MPa	Vertical	Transverse
Grade1	55 000	380	30 000	205	35	25
Grade3	65 000	450	35 000	240	30	20
Grade4	60 000	415	35 000	240	30	16.5
Grade6	60 000	415	35 000	240	30	16.5
Grade7	65 000	450	35 000	240	30	22
Grade8	100 000	690	75 000	515	22	-
Grade9	63 000	435	46 000	315	28	-
Grade10	80 000	550	65 000	450	22	-
Grade11	65 000	450	35 000	240	18	-


