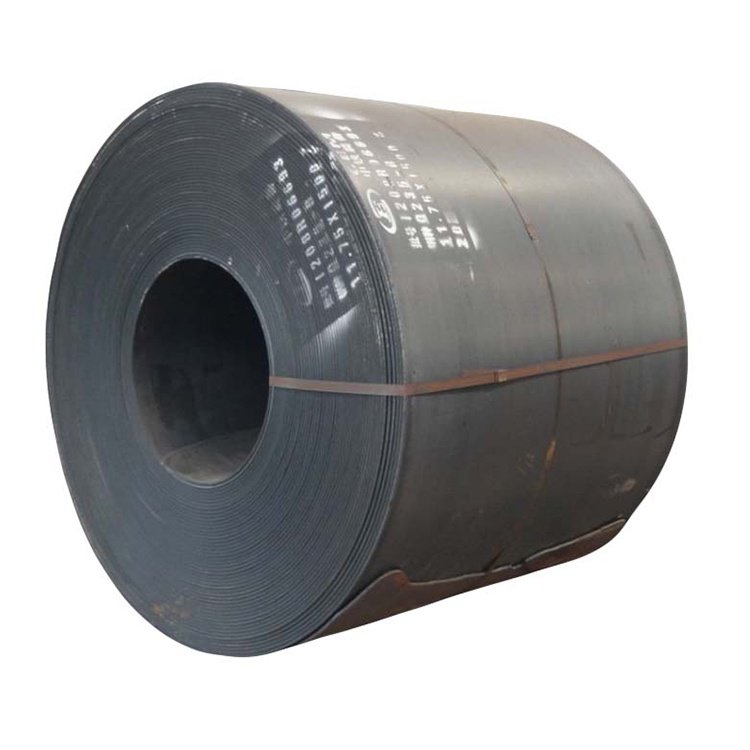

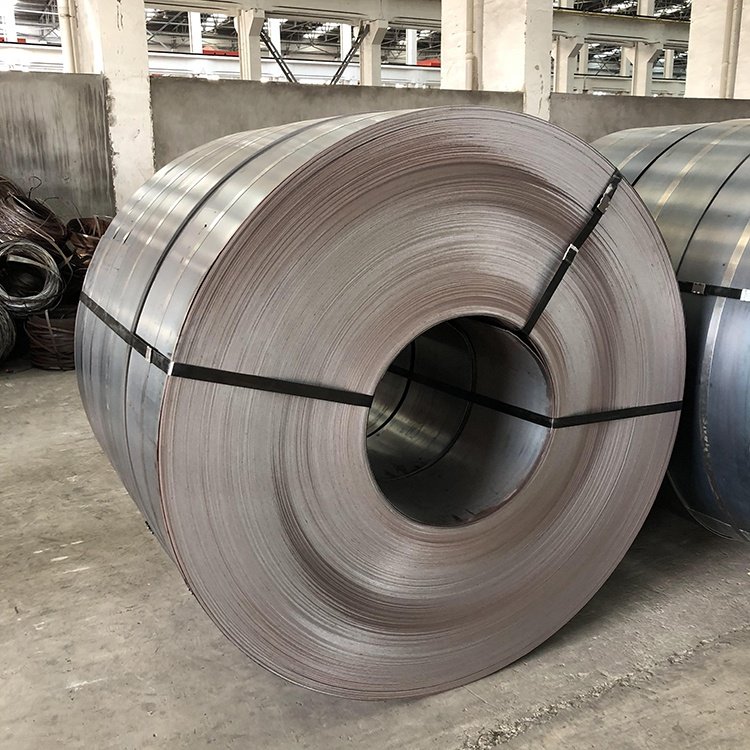

A709/S355J0W Carbon Steel Coil

ASTM A709 steel coil is in accordance with the standard specification for bridge structural steel, ASTM A709 steel coil is a carbon, high strength low alloy and quenched and tempered alloy steel mainly used in bridge construction. BBN offers the following 5 grades of steel coils: A709,36, 50, 50W, HPS 50W. The atmospheric corrosion resistance index of 50W, HPS 50W and HPS 70W are 6.0.

Email : info@posco-metal.com

Contact Us

Product Description

Factory Workshop

Packing And Delivery

A709/S355J0W Carbon Steel Coil Description

Scope of Application

ASTM A709 Gr.36/Gr.50/Gr.50W applies to steel structure/steel processing parts for bridges, railways, ships, vehicles, machine tools, etc. ASTM A709 Gr.36/Gr.50/Gr.50W steel includes carbon steel and high-strength low-alloy steel structural sections, plates and bars, and quenched and tempered alloy steel for structural plates.

Product Parameters

Product Name	A709/S355J0W Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mmCold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A709	50W			50	36
A709	Type A	Type B	Type C	50	≤ 20mm	20-40mm	40-65mm	65-100mm
C	0.19	0.20	0.15	0.23	0.25	0.25	0.25	0.27
Mn	0.80-1.25	0.75-1.35	0.80-1.35	1.35	-	0.80-1.20	0.80-1.20	0.80-1.20
P.max	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04
S.max	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05
Si.max	0.30-0.65	0.30-0.65	0.15-0.40	-	0.40	0.40	0.15-0.40	0.15-0.40
With..min	0.25-0.40	0.20-0.40	0.20-0.50	-	0.20	0.20	0.20	0.20
Ni.max	0.40	0.50	0.25-0.50	-	-	-	-	-
Cr	0.40-0.65	0.40-0.70	0.30-0.50	-	-	-	-	-
V	0.02-0.10	0.01-0.10	0.01-0.10	-	-	-	-	-

Mechanical Properties

A709	Thicknessmm	Yield Strengthmin	Tensile Strengthmin	Elongation%
A709	Thicknessmm	Yield Strengthmin	Tensile Strengthmin	200mm	50mm
36	≤100	250	400-550	20	23
50	≤100	345	450	18	21
50S	-	345-450	450	-	-
50W, HPS50W	≤100	345	485	18	21
HPS70W	≤100	485	585-760	-	19
100, 100W, HPS100W	≤ 65	690	760-895	-	18
100, 100W	65-100	620	690-895	-	16

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80g/cc	0.282 lb/in³


